Check Valve
1 Simplify pipeline design: In systems that need to prevent the reverse flow of fluid, the use of one-way valves can simplify pipeline design.
2 Increase safety: Increase the safety of the system to prevent accidents from happening
3 High reliability: very reliable, usually does not require external energy, only depends on the pressure difference of the fluid to operate, and is not susceptible to power failure.
4 Low maintenance cost: Due to its simplicity, check valves usually require very little maintenance.Their parts have a long life span and are not easy to damage, which reduces the cost of maintenance and replacement.
5 Compact design: Compact design, can be easily integrated into various systems, will not take up too much space
6 Corrosion resistance: It has extremely high resistance to almost all chemical media and is suitable for various corrosive environments.
7 High temperature resistance: can withstand continuous operating temperatures up to 260°C, suitable for high temperature environments
8 Non-viscous: the surface is very smooth, not easy to adhere to substances, and easy to clean
9 Long-term stability: maintain performance in long-term use without frequent replacement
10 Easy to install: the flaring design simplifies the connection process with the piping system

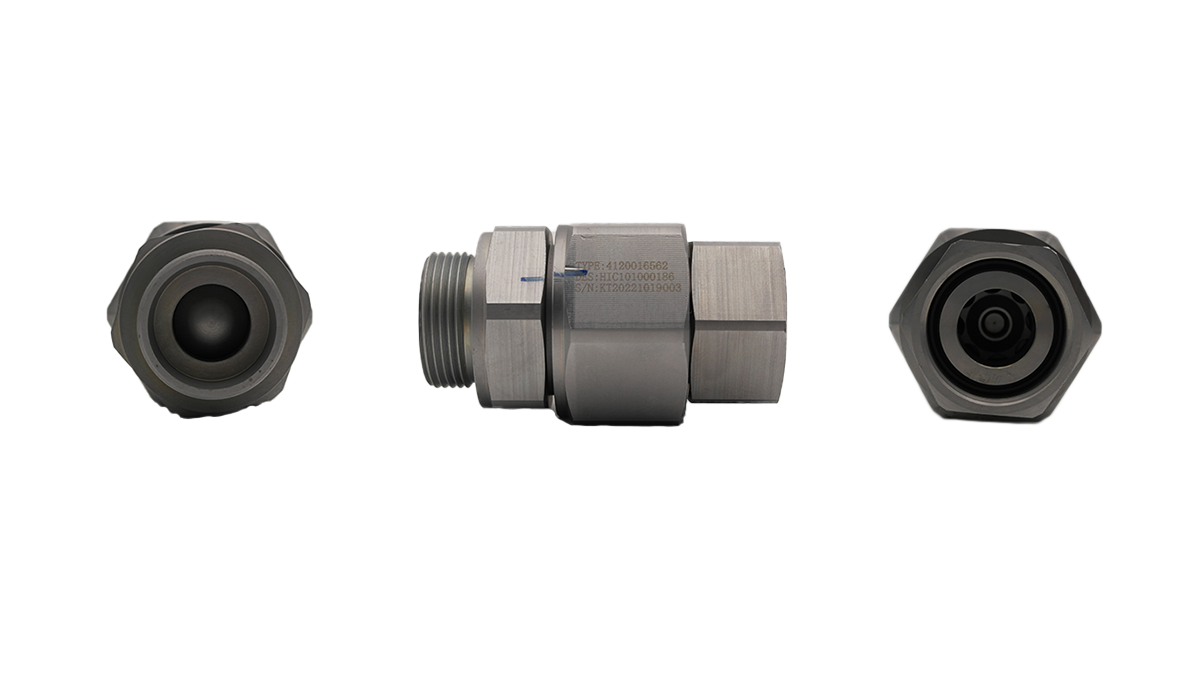

Hydraulic check valve
Detailed parameters
| The maximum working pressure | The opening pressure | Rated flow |
| 250bar | 4bar | rate 150 liters/min |

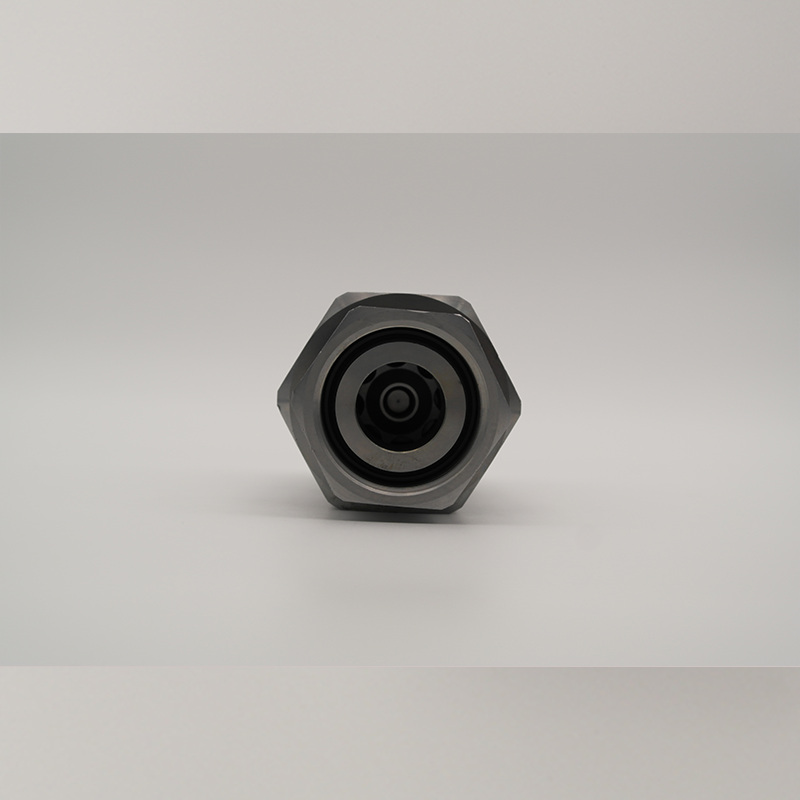

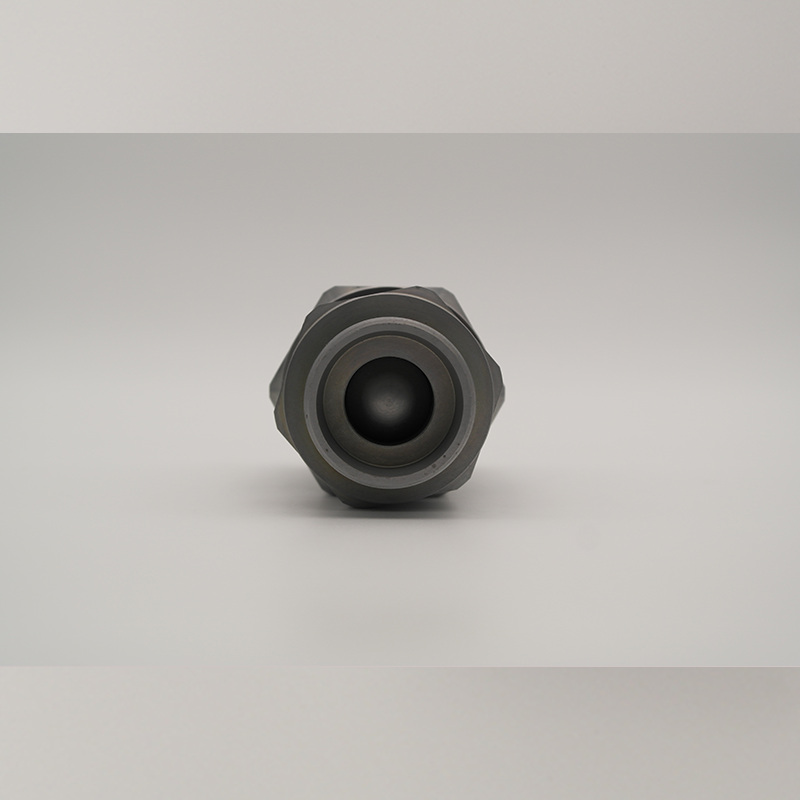

Hydraulic check valve
A directional control valve where air flow or liquid can only flow in one direction and cannot flow in reverse.The working principle is a sphere, in a cone.When the liquid passes from one end of the cone to the other, push the sphere away and pass through.When passing in reverse, the sphere clogs the channel and the liquid cannot pass through.
Application Scenarios:
Our customized hydraulic valve blocks represent the top level of hydraulic control technology, designed with a focus on performance, reliability and durability. Their wide range of application scenarios make them ideal for use in a variety of mechanical equipment and industrial systems.
Product Line:
The production line for Customised Hydraulic Valve Blocks is characterised by precise craftsmanship and efficient processes, ensuring that each block is perfectly tailored to the customer's individual requirements. The production line begins with the initial design, which is planned in detail by engineers according to the customer's requirements, followed by material processing and precision manufacturing on high-precision machinery and equipment. After a rigorous assembly and testing process, each valve block is strictly inspected to ensure its performance and durability.
Warehouse:
The facility for producing Customized Hydraulic Valve Blocks is a state-of-the-art manufacturing plant designed for precision and efficiency. The plant features advanced CNC machining centers that ensure high accuracy in cutting, drilling, and milling. Dedicated design and engineering teams work closely to tailor each valve block to meet specific client requirements. The production process includes rigorous assembly and testing stations, where each valve block undergoes thorough quality checks to ensure optimal performance and reliability. The facility also incorporates modern surface treatment and packaging areas, ensuring that the final products are well-protected and ready for prompt delivery to clients.
Packing&transportation:
The packaging for Customized Hydraulic Valve Blocks is meticulously designed to ensure safe and secure transport. Each valve block is carefully wrapped in protective materials, such as foam or bubble wrap, to guard against potential damage during shipping. The blocks are then placed in custom-sized, reinforced boxes that provide additional cushioning and support. Each package is clearly labeled with handling instructions and product information to facilitate smooth logistics and tracking. This comprehensive packaging approach ensures that the valve blocks arrive at their destination in excellent condition, ready for installation and use.
