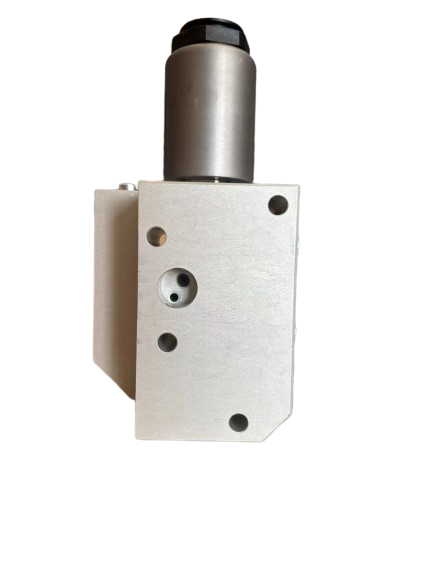

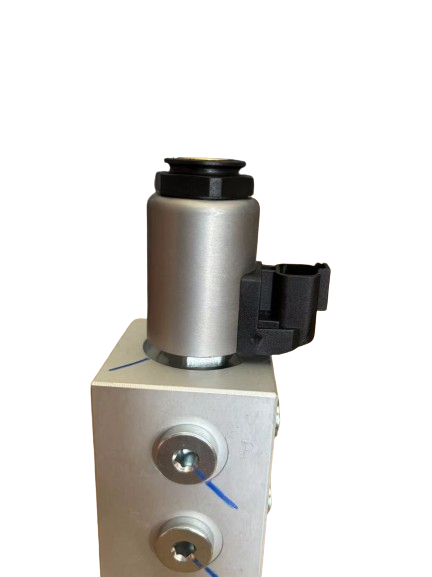

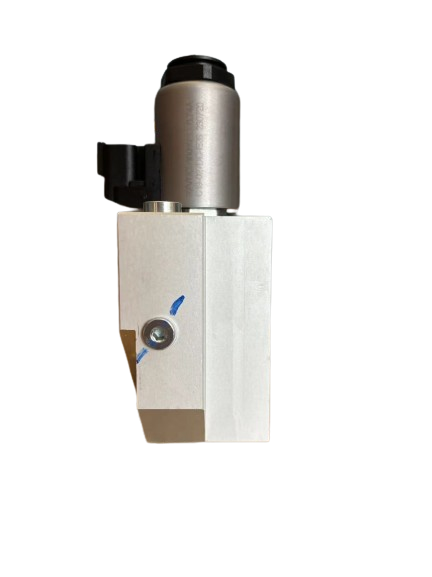

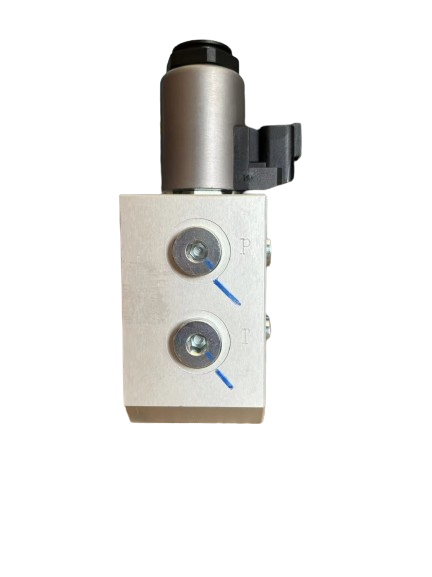

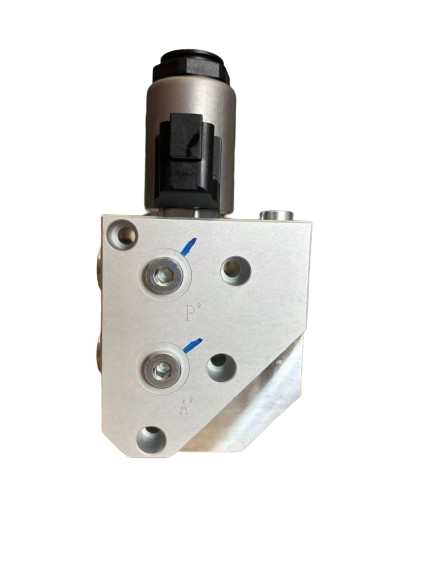

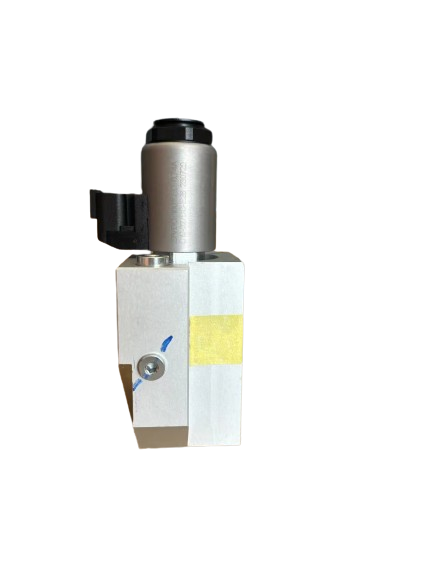

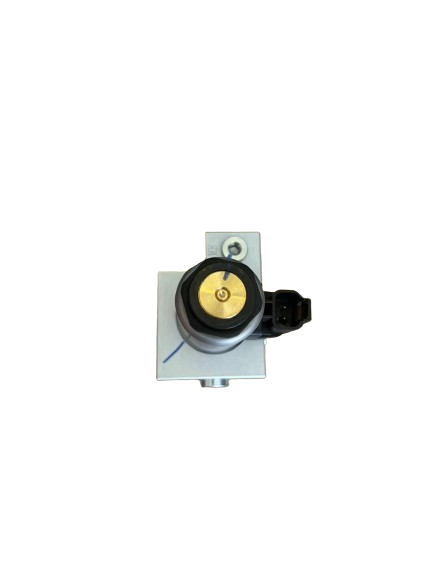

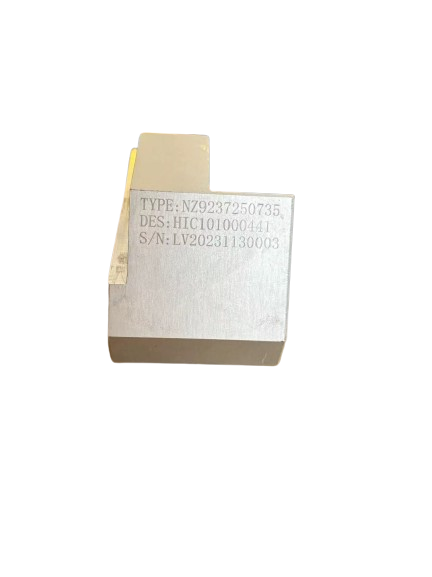

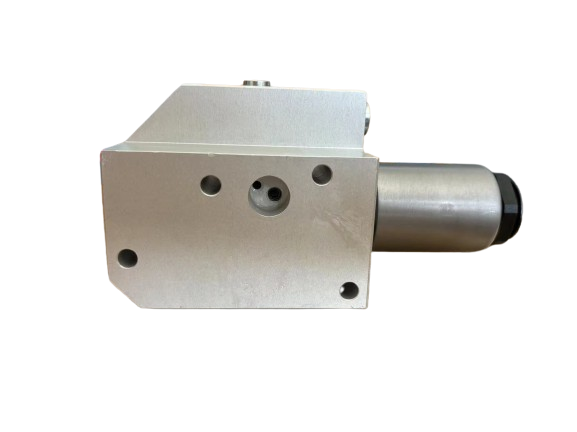

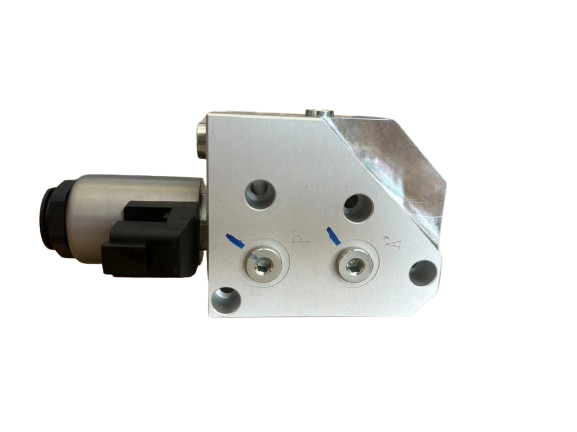

Solenoid Reversing Valve

Principle

Electromagnetic reversing valve is a device that uses the principle of electromagnetic mechanics to control the state of the oil port. It is mainly composed of valve body, valve core, coil and other parts.When the coil is energized, the magnetic field generated can push the valve core, thereby changing the relative position between the valve core and the valve body, so as to achieve the purpose of controlling the state of the oil port.

Working method

The working mode of electromagnetic directional control valve is generally divided into three states: open, middle and closed.When the coil is not powered on, the valve core is in a closed state and the oil ports are disconnected; when the coil is energized, the valve core is moved up by magnetic force, connecting the two oil ports to achieve an open state; when the coil is energized and then powered off, the valve core will return to the middle position to achieve the middle state.

Application areas and characteristics

Electromagnetic directional control valves are widely used in various machinery and equipment, such as construction machinery, agricultural machinery, ships, aerospace and other fields, and play a very important role.Compared with other control valves, electromagnetic directional control valves have the characteristics of high control accuracy, fast response speed, and good durability, and are widely used in various fields.

Electromagnetic directional control valve is a device that relies on the principle of electromagnetic mechanics to control the state of the oil port. Its working method is simple and it has a wide range of applications.This kind of valve has the characteristics of high control accuracy, fast response speed, and good durability, so it has very important application value in various fields.

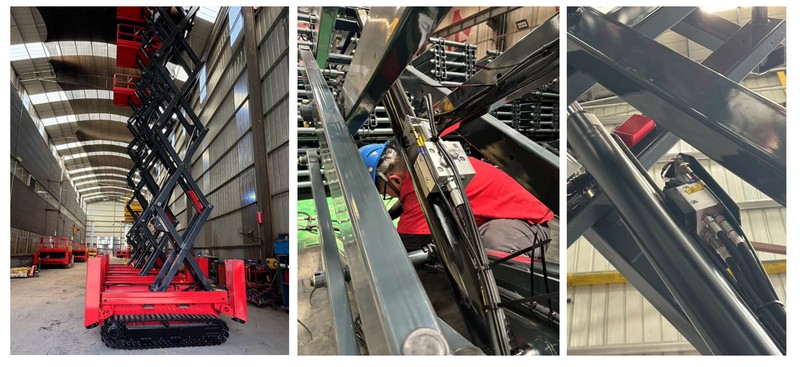

Product application

Product Line

Our Warehouse

Packing and Transportation

Please leave a message or send an email for details to ensure that you are satisfied with the price
