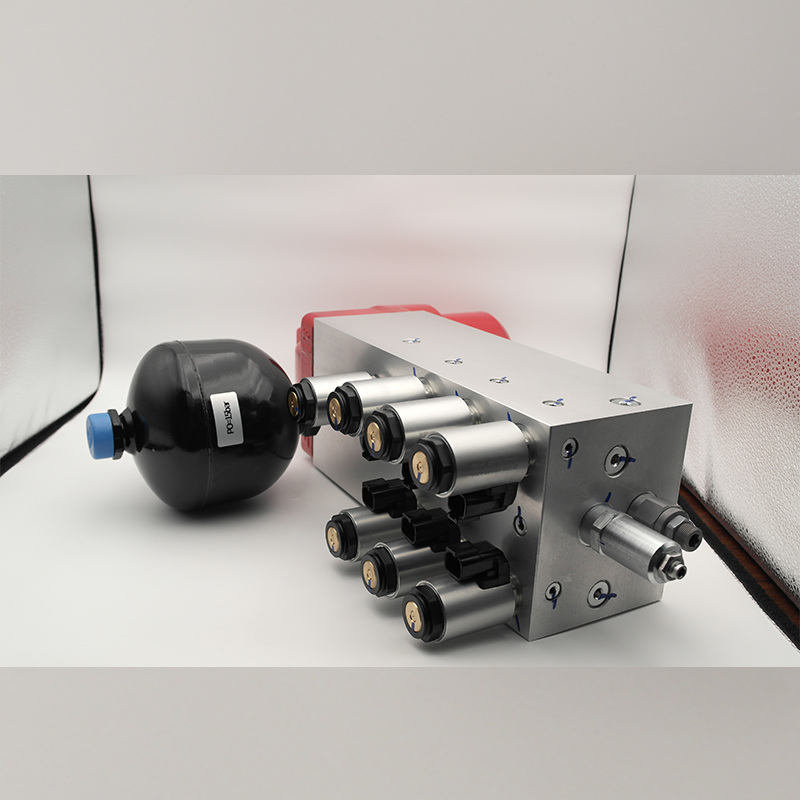

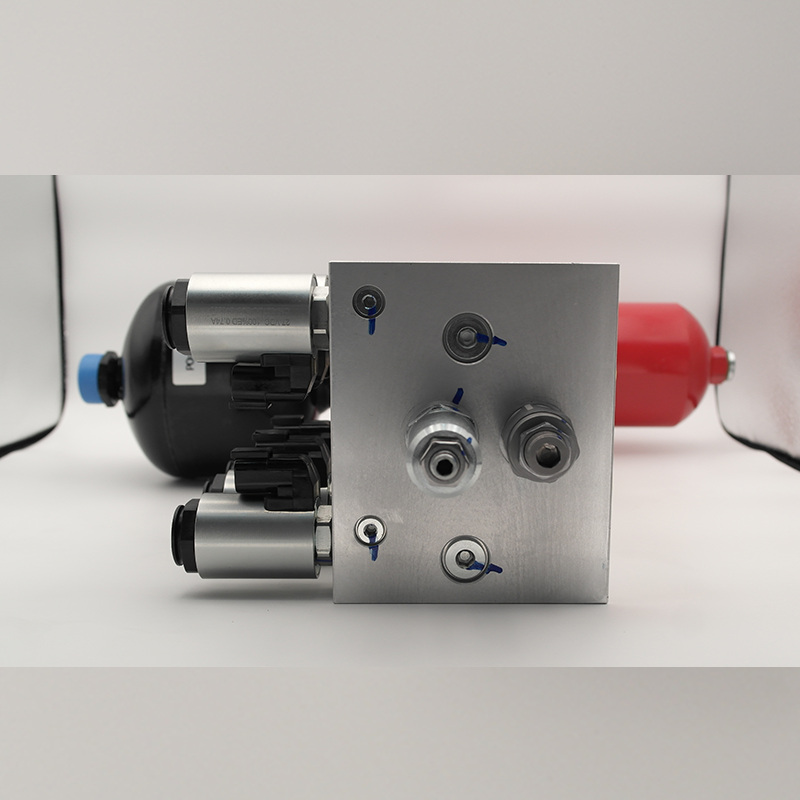

Solenoid Valve Set

1 Reliability: It can be reused during the entire service life of the product, and basically does not require maintenance.

2 Durability: The force of the hydraulic block is almost unlimited, and the driving force is strong, greater than 350KN.The rated temperature range of the standard model specifications is -20 degrees to 120 degrees, which has the characteristics of cleanliness and high energy consumption. 3 Widely used: The advantage of the cylinder synchronous valve (a kind of upper cylinder oil valve block assembly) lies not only in its control accuracy, but also in its reliability and stability.They are usually manufactured with high-quality materials and precision machining technology to ensure their reliable operation in harsh working environments.‌

4 It can also be customized according to actual needs to meet the special needs of different mechanical devices.The application range of cylinder synchronous valves is very wide

Contact Now E-Mail Telephone WhatsApp

Product Details

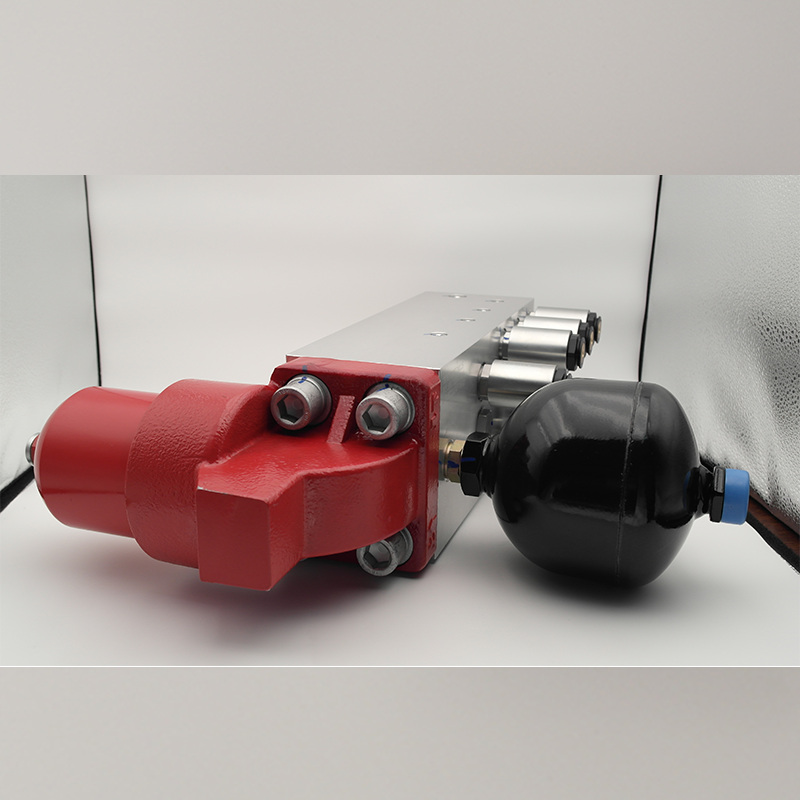

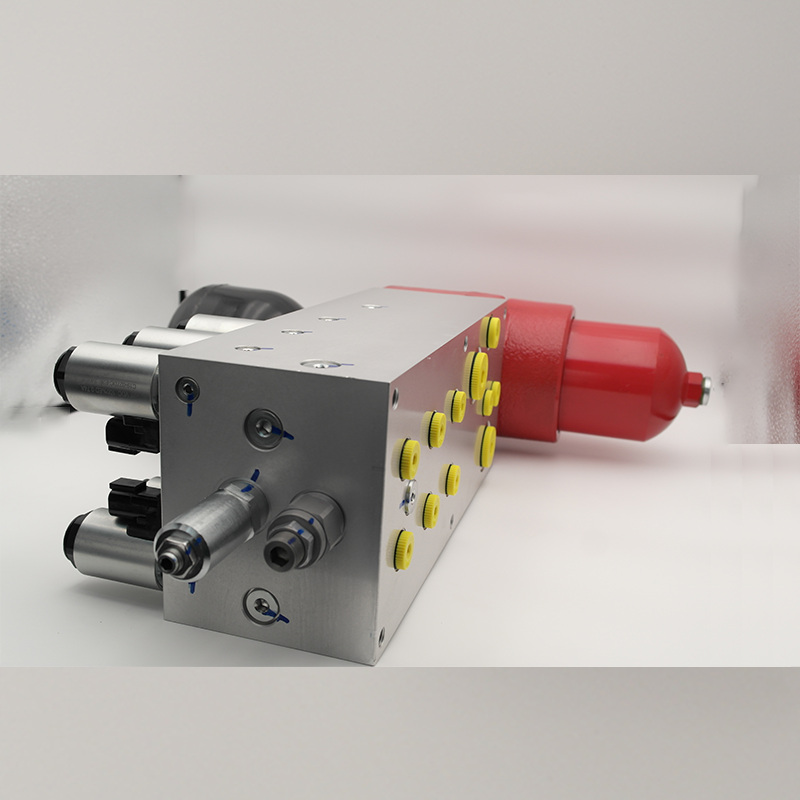

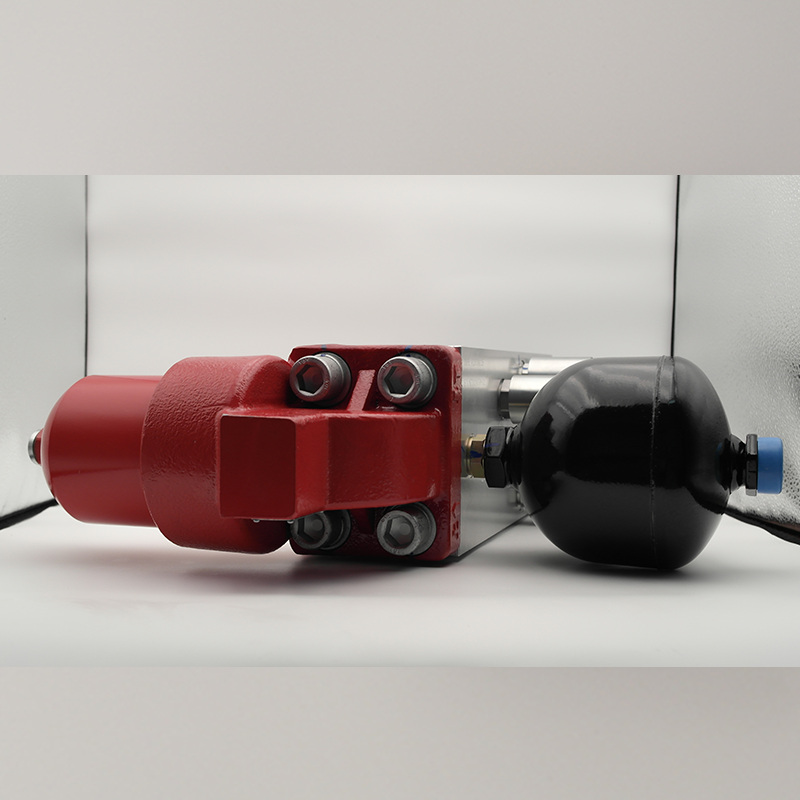

Customized hydraulic valve set

Detailed parameters

Rated pressure	System oil	Rated voltage	Oil port specifications	Integrated block material	Accumulator Volume:	Filter	Pressure setting
40 Bar	Hydraulic oil: Mineral hydraulic oil of ISO VG32, 46 and 68Viscosity range: 10-500 mm2/sCleanliness level: 21/18/15 According to ISO4406 (1999)Oil temperature range: -20~80℃	27V±15%, connector DT04-2P	P T PORT: G3/4-ED (DIN3852-2); A PORT: G3/8-ED (DIN3852-2);P1,P2, C1-C6, M,M1: G1/4-ED (DIN3852-2); M,M1 is blocked with steel.	AL-6061-T6, surface anodized	1L; inflation pressure: 15 bar	accuracy 10um; flow rate: 160L/min; bypass valve opening pressure: 5bar	Relief valve: set pressure: 40bar; pressure reducing valve 35bar

Parameter:

The maximum pressure of the P port	240 bar
Maximum flow	30L/min
Voltage range	DC24V±15%; plug DTO4-2P, rated power 23.8W, protection level IP67
Allowable ambient operating temperature	-20-80℃
The oil temperature range	20-90℃

Application Scenarios:

Our customized hydraulic valve blocks represent the top level of hydraulic control technology, designed with a focus on performance, reliability and durability. Their wide range of application scenarios make them ideal for use in a variety of mechanical equipment and industrial systems.

Hydraulic Valve Block

Product Line:

The production line for Customised Hydraulic Valve Blocks is characterised by precise craftsmanship and efficient processes, ensuring that each block is perfectly tailored to the customer's individual requirements. The production line begins with the initial design, which is planned in detail by engineers according to the customer's requirements, followed by material processing and precision manufacturing on high-precision machinery and equipment. After a rigorous assembly and testing process, each valve block is strictly inspected to ensure its performance and durability.

Hydraulic Valve Block

Warehouse:

The facility for producing Customized Hydraulic Valve Blocks is a state-of-the-art manufacturing plant designed for precision and efficiency. The plant features advanced CNC machining centers that ensure high accuracy in cutting, drilling, and milling. Dedicated design and engineering teams work closely to tailor each valve block to meet specific client requirements. The production process includes rigorous assembly and testing stations, where each valve block undergoes thorough quality checks to ensure optimal performance and reliability. The facility also incorporates modern surface treatment and packaging areas, ensuring that the final products are well-protected and ready for prompt delivery to clients.

Hydraulic Valve Block

Packing&transportation:

The packaging for Customized Hydraulic Valve Blocks is meticulously designed to ensure safe and secure transport. Each valve block is carefully wrapped in protective materials, such as foam or bubble wrap, to guard against potential damage during shipping. The blocks are then placed in custom-sized, reinforced boxes that provide additional cushioning and support. Each package is clearly labeled with handling instructions and product information to facilitate smooth logistics and tracking. This comprehensive packaging approach ensures that the valve blocks arrive at their destination in excellent condition, ready for installation and use.

Hydraulic Valve Block
