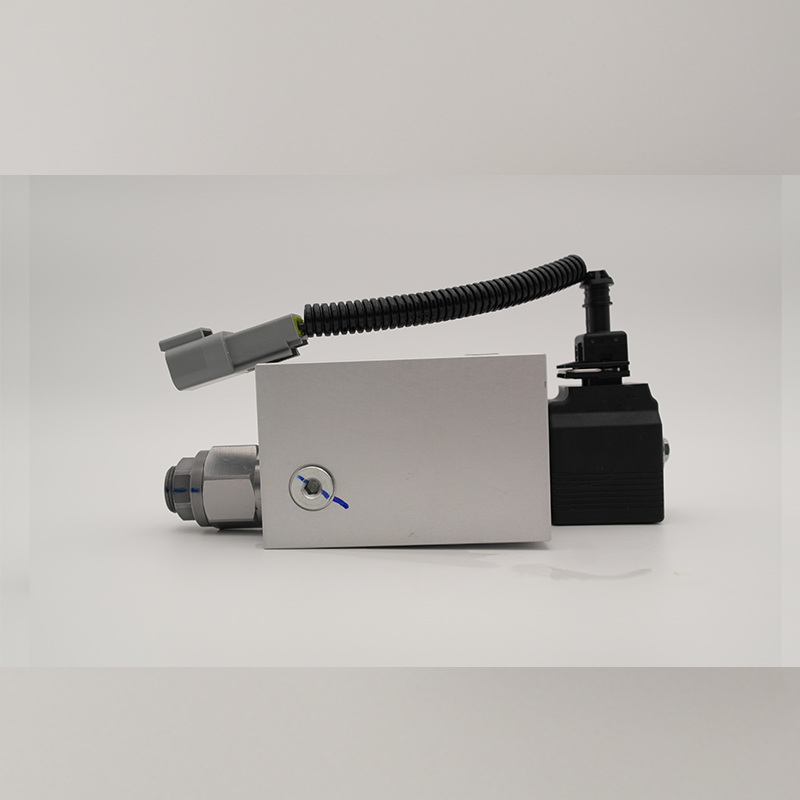

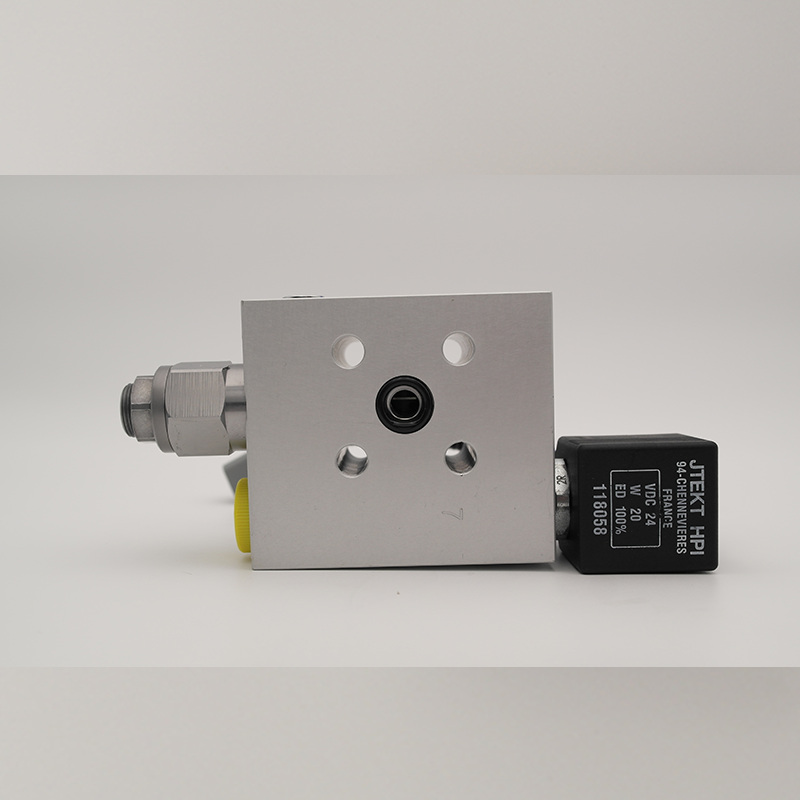

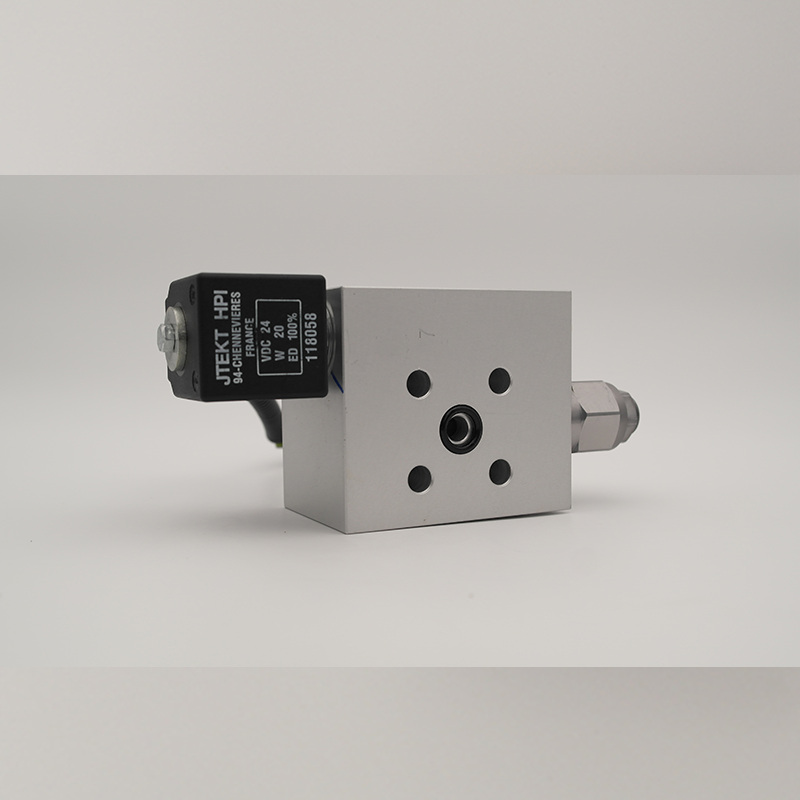

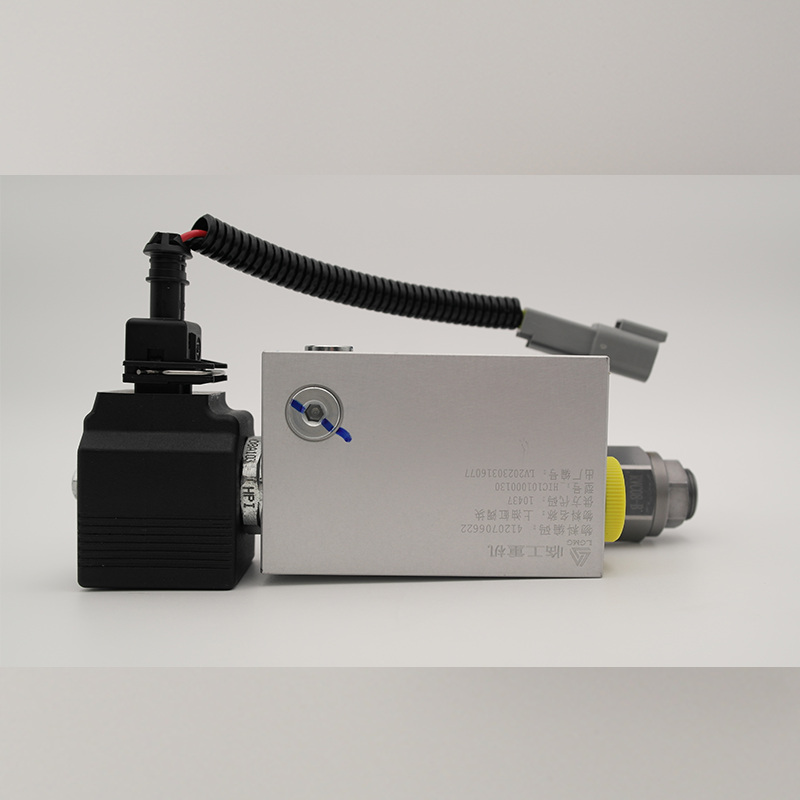

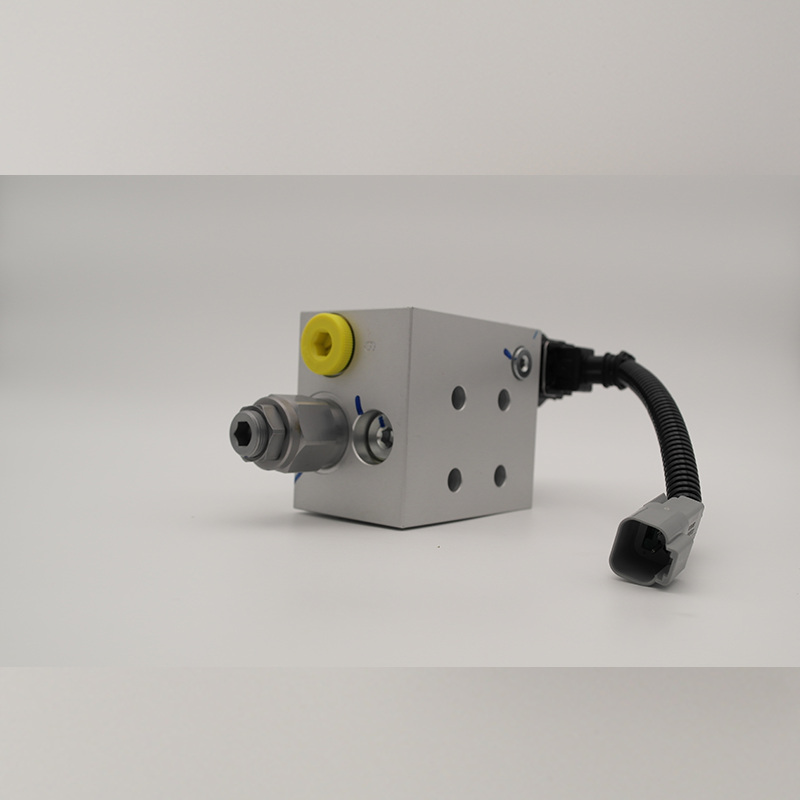

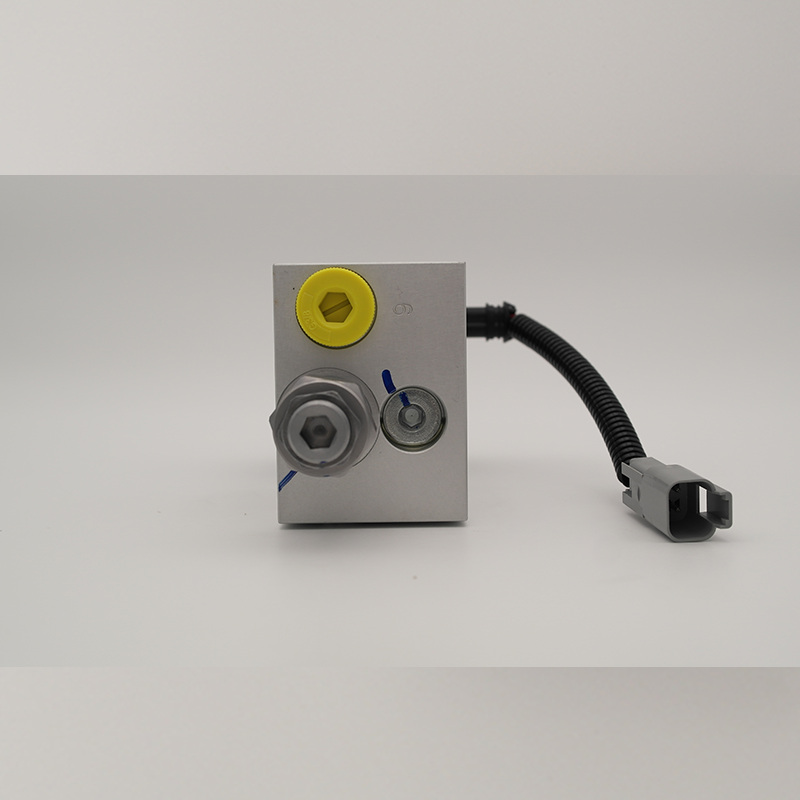

Upper Cylinder Oil Valve Block Assembly
1 Reliability: It can be reused during the entire service life of the product, and basically does not require maintenance.
2 Durability: The force of the hydraulic block is almost unlimited, and the driving force is strong, greater than 350KN.The rated temperature range of the standard model specifications is -20 degrees to 120 degrees, which has the characteristics of cleanliness and high energy consumption. 3 Widely used: The advantage of the cylinder synchronous valve (a kind of upper cylinder oil valve block assembly) lies not only in its control accuracy, but also in its reliability and stability.They are usually manufactured with high-quality materials and precision machining technology to ensure their reliable operation in harsh working environments.
4 It can also be customized according to actual needs to meet the special needs of different mechanical devices.The application range of cylinder synchronous valves is very wide

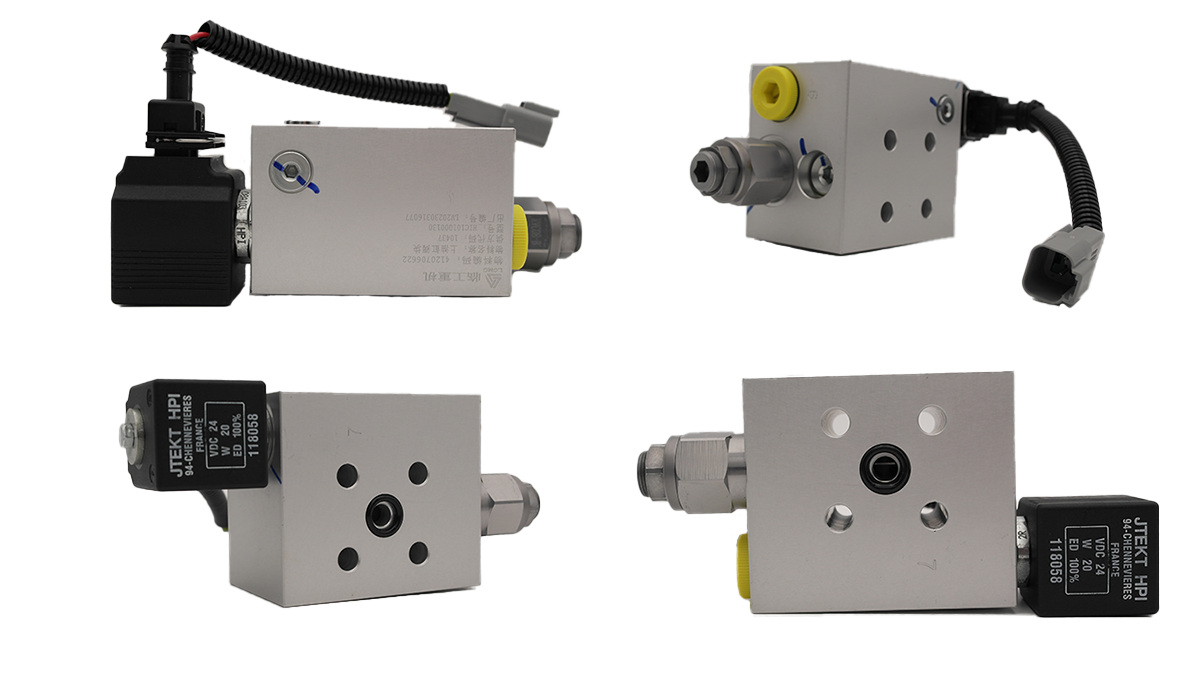

Upper cylinder oil valve block assembly
Detailed parameters
| Working pressure | Maximum flow | Voltage range | Valve body material | Oil port | Relief valve set pressure | Relief valve pressure adjustment range |
| 240bar | rate 20L/min | DC24V±15%; plug DTO4-2P; rated power 22W | 6061-T6 | G3/8 (plane seal) Oil port 7:8 (O-ring plane seal)； | 110bar@5L | 50-220bar |
Product application
Product Line:
The production line for Customised Hydraulic Valve Blocks is characterised by precise craftsmanship and efficient processes, ensuring that each block is perfectly tailored to the customer's individual requirements. The production line begins with the initial design, which is planned in detail by engineers according to the customer's requirements, followed by material processing and precision manufacturing on high-precision machinery and equipment. After a rigorous assembly and testing process, each valve block is strictly inspected to ensure its performance and durability.
Warehouse:
The facility for producing Customized Hydraulic Valve Blocks is a state-of-the-art manufacturing plant designed for precision and efficiency. The plant features advanced CNC machining centers that ensure high accuracy in cutting, drilling, and milling. Dedicated design and engineering teams work closely to tailor each valve block to meet specific client requirements. The production process includes rigorous assembly and testing stations, where each valve block undergoes thorough quality checks to ensure optimal performance and reliability. The facility also incorporates modern surface treatment and packaging areas, ensuring that the final products are well-protected and ready for prompt delivery to clients.
Packing&transportation:
The packaging for Customized Hydraulic Valve Blocks is meticulously designed to ensure safe and secure transport. Each valve block is carefully wrapped in protective materials, such as foam or bubble wrap, to guard against potential damage during shipping. The blocks are then placed in custom-sized, reinforced boxes that provide additional cushioning and support. Each package is clearly labeled with handling instructions and product information to facilitate smooth logistics and tracking. This comprehensive packaging approach ensures that the valve blocks arrive at their destination in excellent condition, ready for installation and use.
