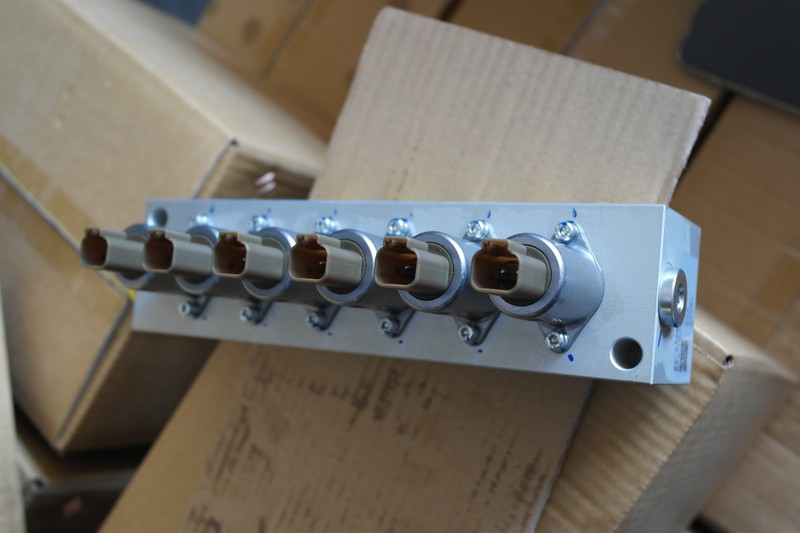

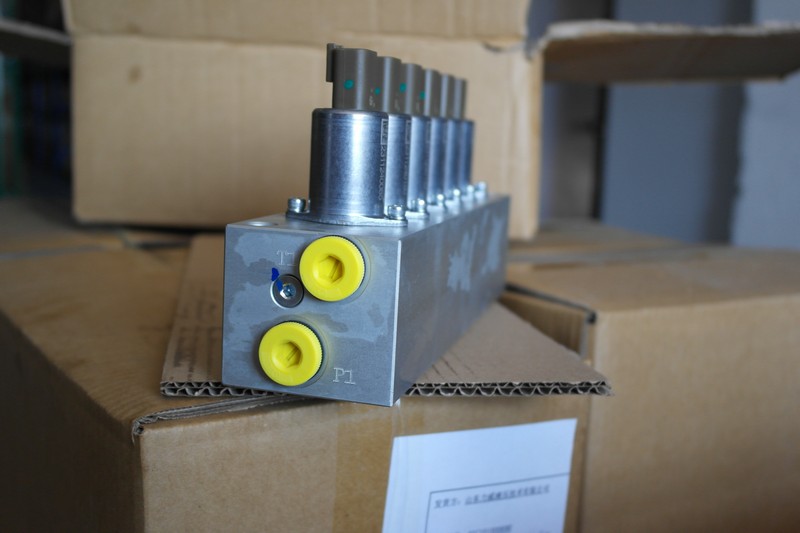

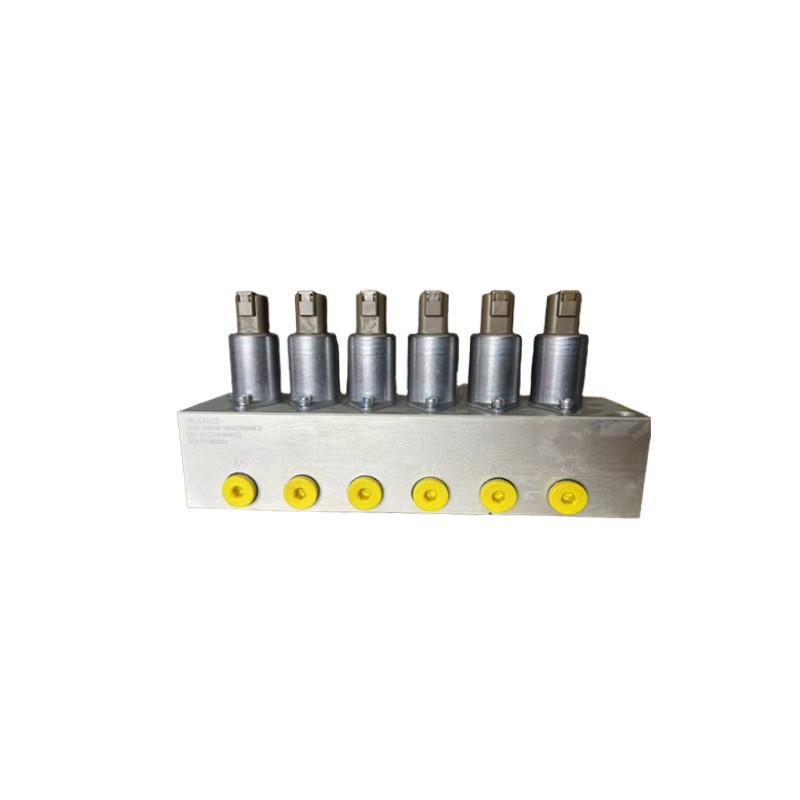

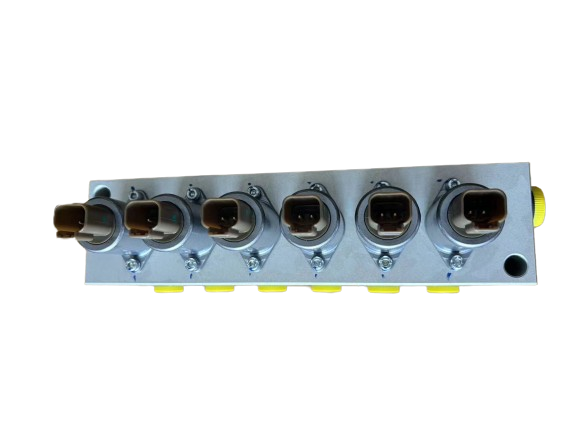

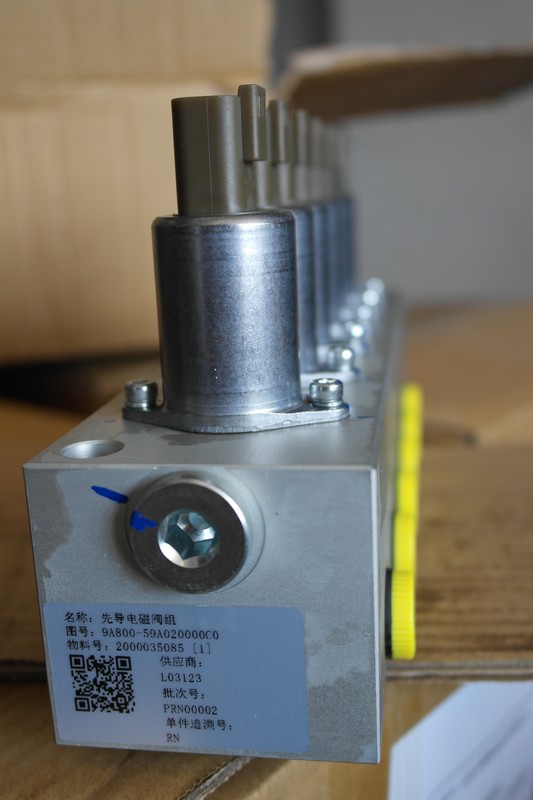

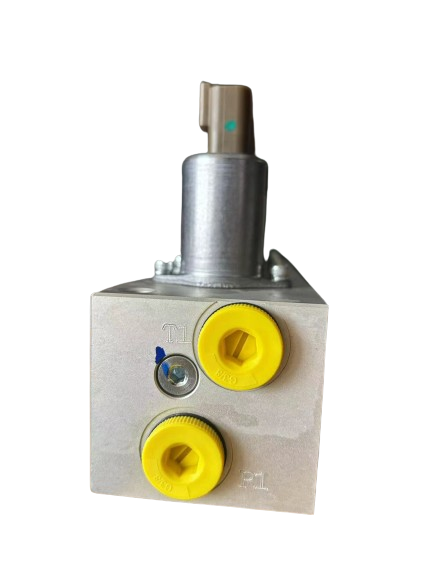

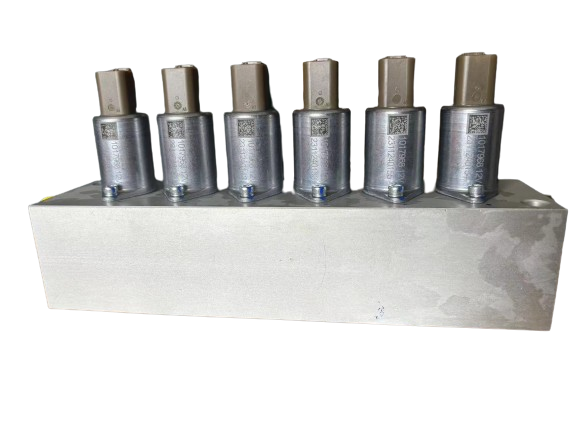

Pilot Solenoid Valve Set

Can be customized according to customer needs

Customized case：

1.Maximum working pressure: 50 bar；

2.Maximum decompression pressure: 30 bar；

3.Rated flow rate: 10L/min；

4.Rated voltage: 12V, connector DT04-2P, protection level IP67；

5.Maximum current: 1500mA, resistance: 4.72 Ω±5%;

6.Filter: 140 µm (P-Port)；

7.Protection level: IP6k6/IPX9K. ；

8.Allowable ambient operating temperature-20-80℃；

9.The oil temperature range is -20-90℃.

The working principle of the solenoid valve is that the inside of the solenoid valve contains a closed cavity.In the middle of the cavity is a piston, and on both sides of the cavity are two electromagnets.Once the solenoid coil is energized, the valve body will be attracted by force to the direction of the energized electromagnet; and there are through holes in different positions of the cavity, connecting different oil pipes, so the movement of the valve body can be controlled to choose which part of the oil drain hole to open; since the oil inlet hole is in a normally open state, the movement of the valve body causes the hydraulic oil to enter different oil drain pipes, and the pressure of the oil pushes the piston of the cylinder, which in turn pushes the piston rod, thereby driving the mechanical device..Using this principle, the function of controlling mechanical movement by controlling the current conduction and shutdown of the electromagnet can be realized.
